Material Handling & Process Support Products
Integrated Systems,
Custom Fabricated.
Raensol Corp designs and fabricates material handling and process support equipment for mining, mineral processing, aggregate, and industrial applications. All systems are custom-built to client-specific throughput requirements — 1 TPH to 20 TPH.
01
Bulk Material Storage

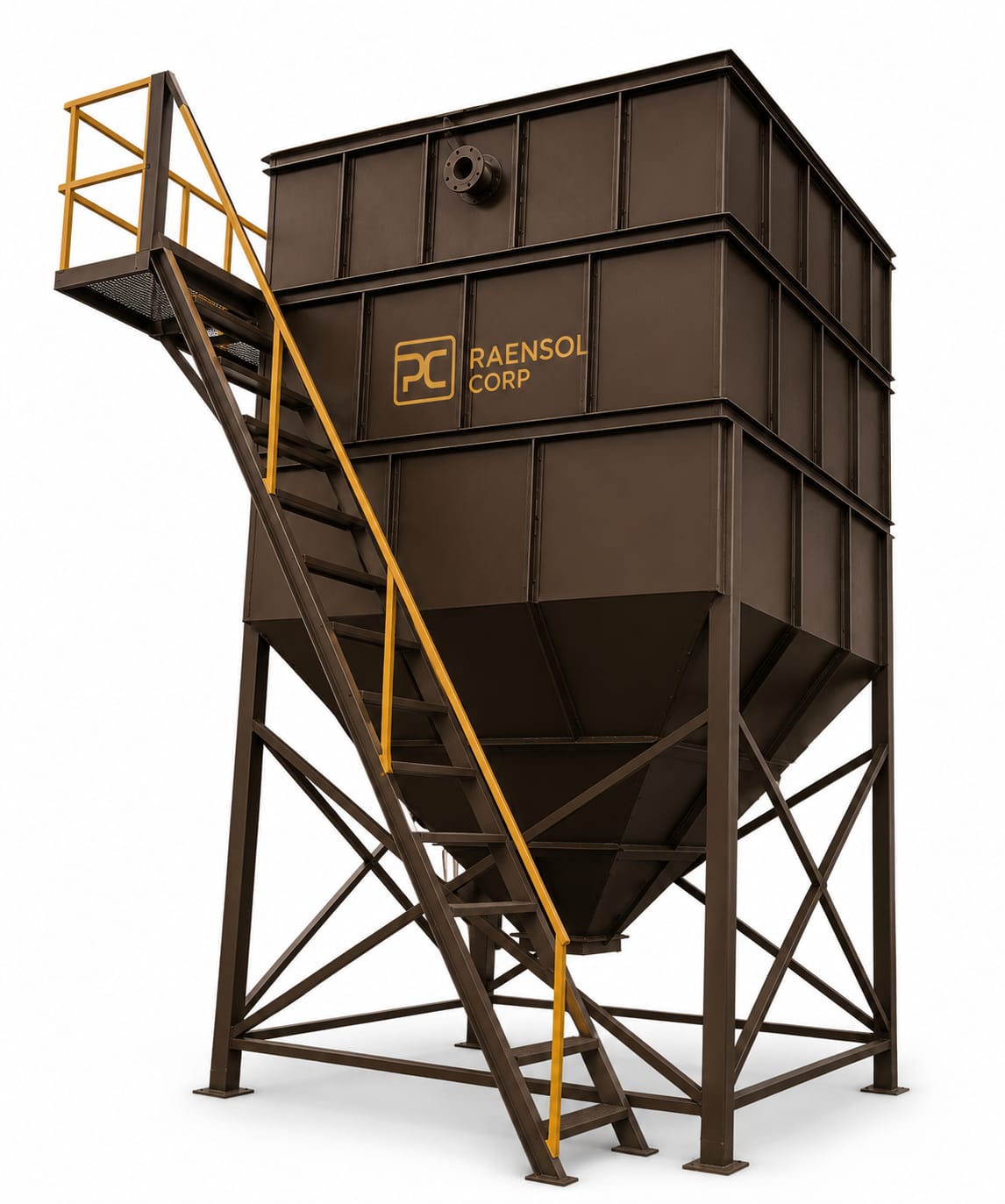

Storage Hoppers
Material Storage & Controlled Discharge
Raensol Corp fabricates heavy-duty storage hoppers for temporary storage and controlled discharge of raw materials, crushed ore, aggregates, and process solids in mining and industrial plants. Each hopper is engineered to client-specific volume and throughput requirements with integrated discharge systems designed to feed downstream conveyors and process equipment reliably.
Key Features
- Heavy-duty mild steel fabricated construction
- Customizable storage volume and geometry
- Integrated discharge gate — manual or motorized
- Compatible with belt conveyors and vibratory feeders
- Skid-mounted or fixed foundation options
- Epoxy coating or client-specified surface treatment
Specifications
Capacity Range
1 TPH – 20 TPH
Fabrication Material
Mild Steel (MS) / Custom
Hopper Type
Fixed / Skid Mounted
Discharge System
Manual Gate / Motorized Gate
Integration
Conveyor & Feeder Compatible
Surface Finish
Epoxy-Coated / As Required
02
Material Transfer Solutions

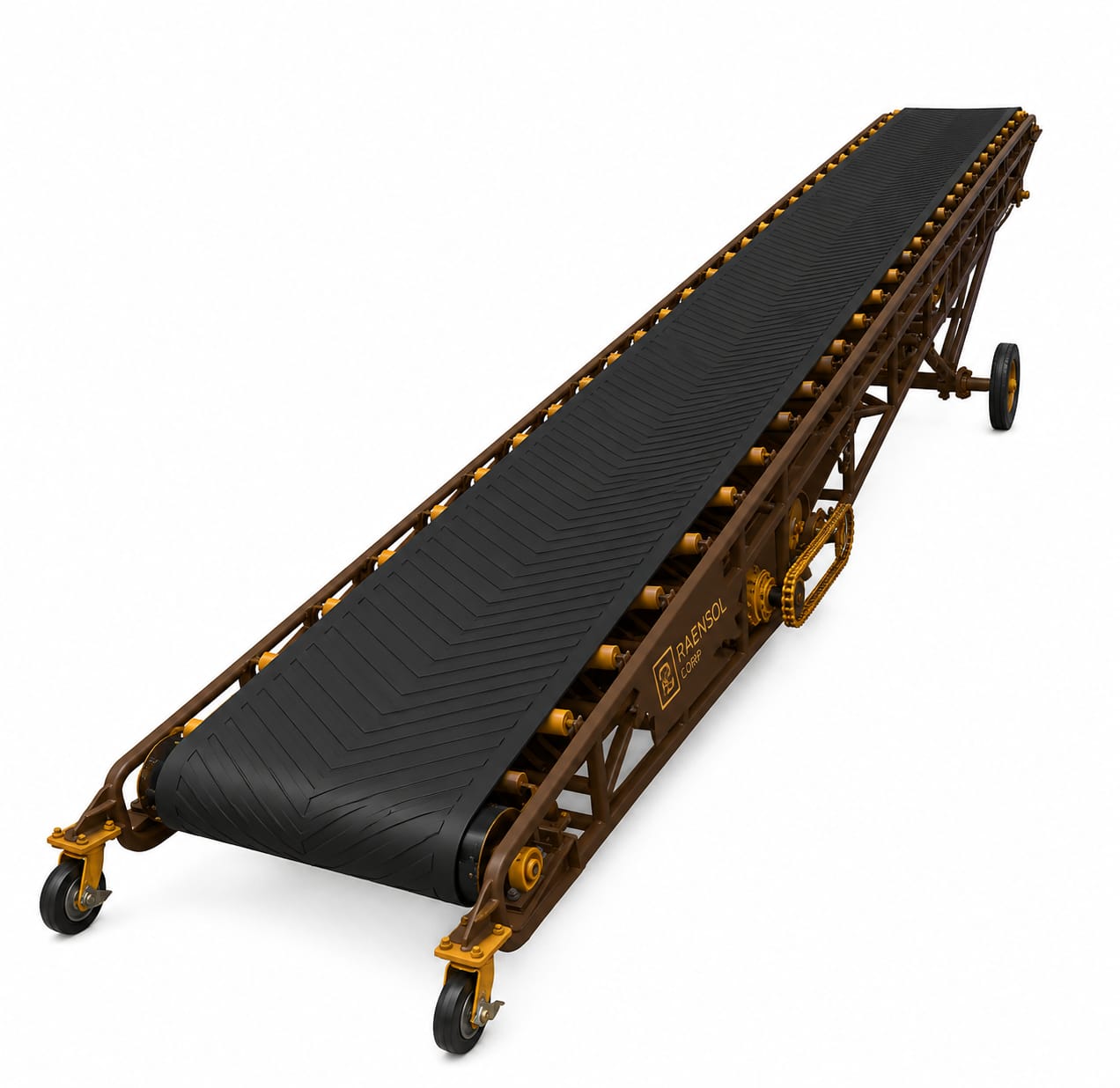

Conveyor Systems
Continuous Material Transfer
Our belt conveyor systems provide continuous, high-reliability material transport between stages of a processing plant — from ore receiving to final product discharge. Fabricated in-house to custom lengths, widths, and inclinations, each unit is built around heavy-duty roller assemblies and geared motor drives engineered for uninterrupted operation under demanding site conditions.
Key Features
- Continuous duty material handling capability
- Heavy-duty belt and sealed-bearing roller assemblies
- Custom length, belt width, and inclination angle
- Geared motor drive with VFD-ready electrical interface
- Suitable for horizontal and inclined configurations
- Emergency stop, belt-slip, and misalignment protection
Specifications
Capacity Range
1 TPH – 20 TPH
Conveyor Type
Belt Conveyor
Belt Width
Customizable
Structure
MS Fabricated Frame
Drive System
Geared Motor Drive
Configuration
Horizontal / Inclined
03
Regulated Feed Systems

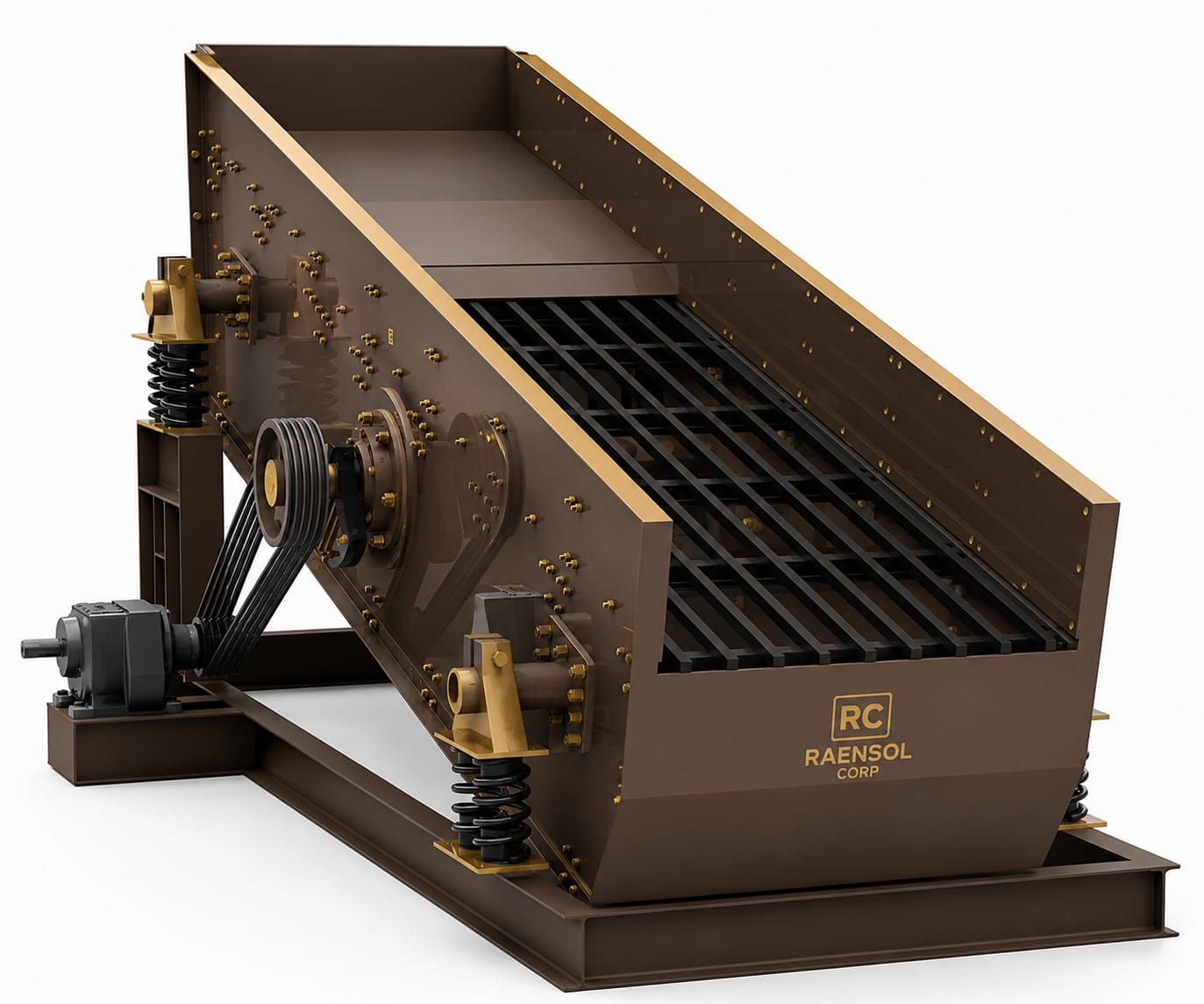

Feeders
Controlled Material Feeding
Raensol Corp fabricates vibratory and mechanical feeders for precise, regulated delivery of bulk materials into crushers, mills, screens, and processing systems. The feed rate is adjustable to match downstream plant capacity, ensuring a consistent material supply that prevents overloading and maximizes throughput efficiency.
Key Features
- Uniform and controlled material flow into downstream equipment
- Heavy-duty fabricated trough structure
- Adjustable feed rate across full operating range
- Continuous duty cycle rated
- Low headroom design for tight plant layouts
- Compatible with crushers, mills, screens, and conveyors
Specifications
Capacity Range
1 TPH – 20 TPH
Feeder Type
Vibratory / Mechanical Reciprocating
Drive System
Motorized (Unbalanced / EC Motor)
Structure
MS Fabricated Trough
Feed Rate
Adjustable
Application
Crushing & Screening Integration
04
Primary Crushing Equipment

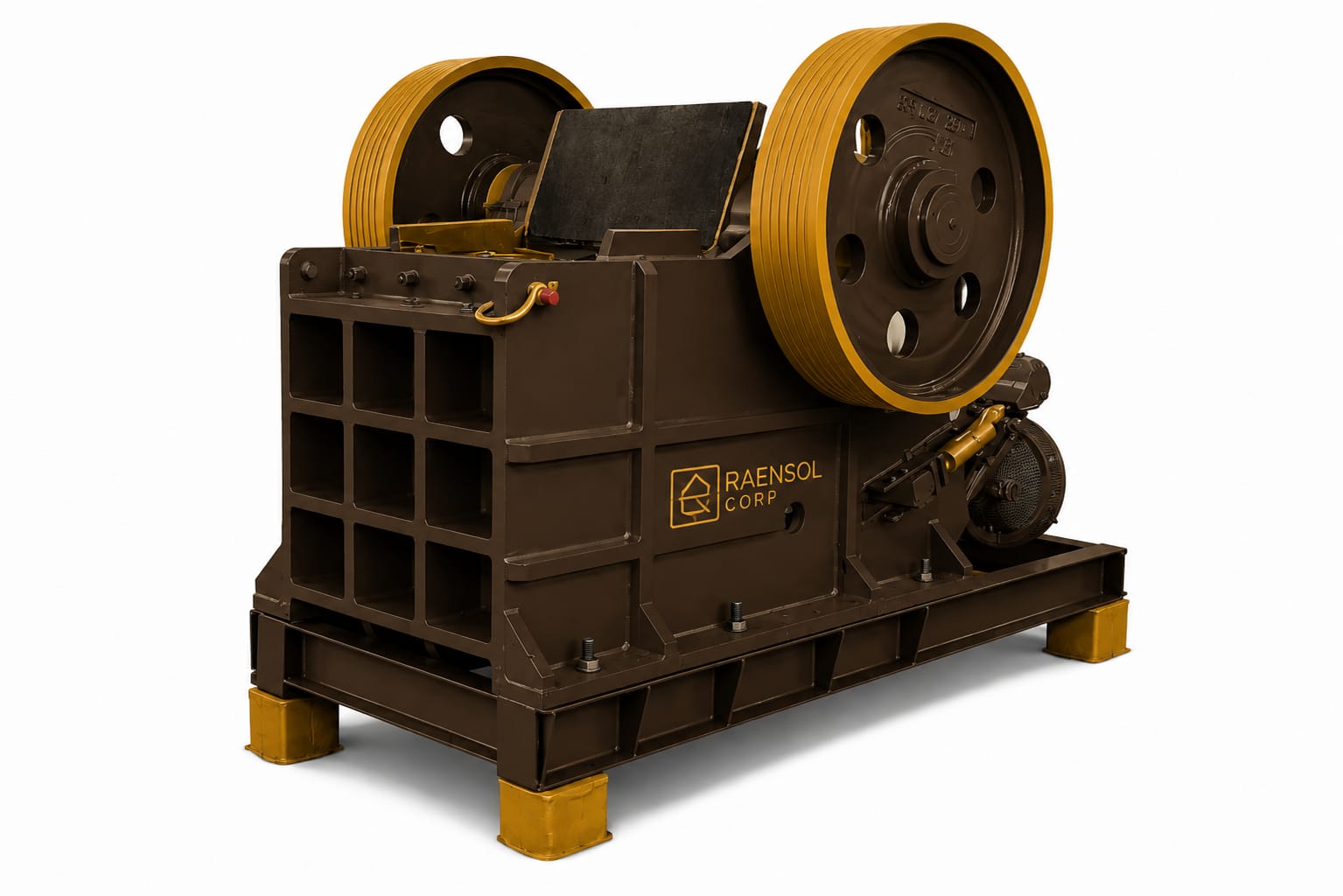

Jaw Crusher
Primary Size Reduction
Raensol Corp fabricates single-toggle jaw crushers for primary size reduction of hard rock, ore, and aggregate materials in mining and mineral processing plants. Engineered with high-grade manganese steel jaw liners and a heavy-duty MS fabricated frame, each unit delivers consistent reduction from run-of-mine feed down to a controlled output size — ready for downstream milling, screening, or further crushing stages.
Key Features
- Single toggle mechanism with double flywheel for smooth operation
- High-grade manganese steel jaw liners for extended wear life
- Heavy-duty MS prime plate fabricated construction
- Low maintenance design with high operational reliability
Specifications
Feed Size
Up to 150 mm
Output Size
30 mm
Capacity
1 TPH – 20 TPH
Power Requirement
20 HP
05
Screening & Classification

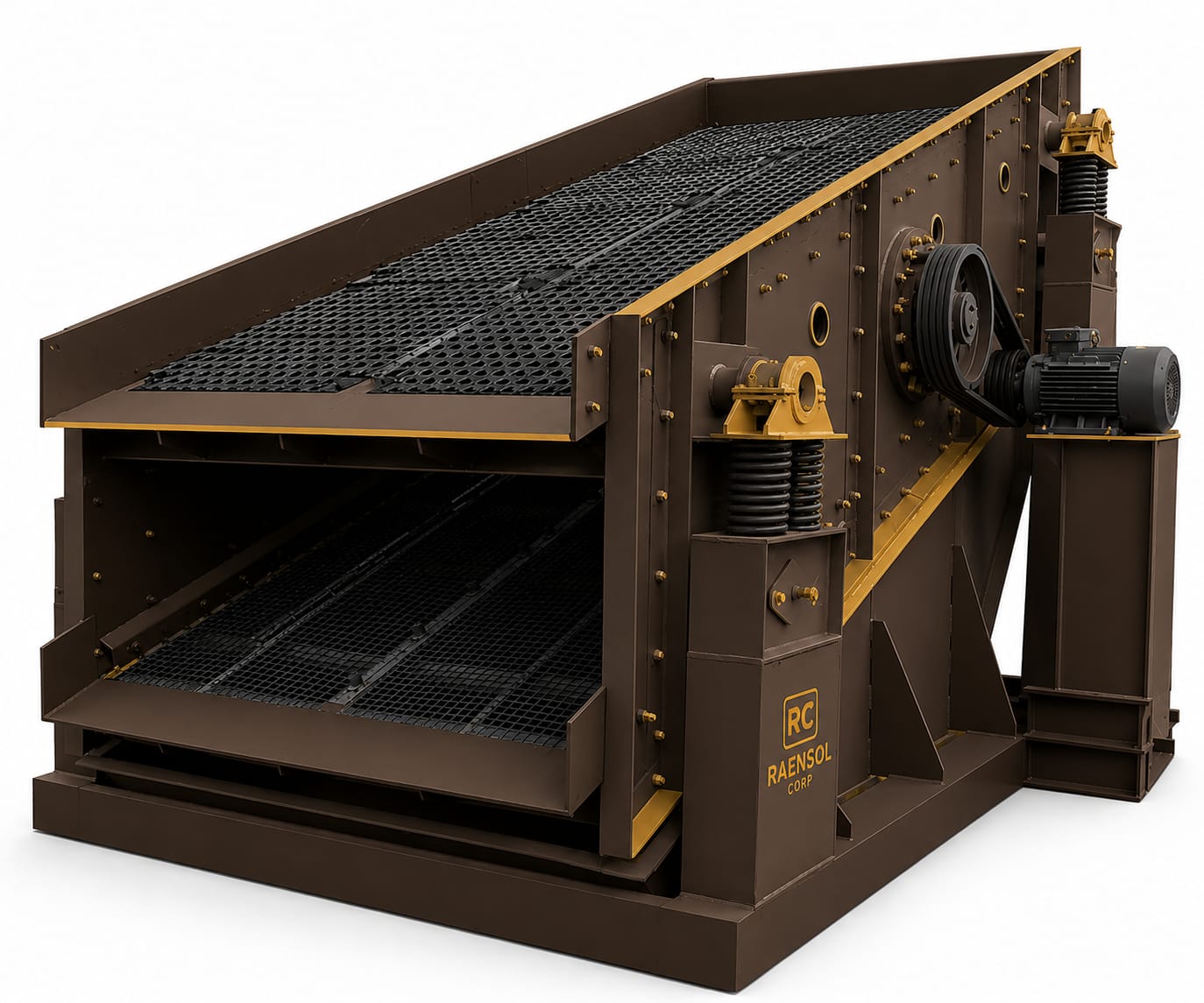

Vibrating Screens
Material Sizing & Separation
Our vibrating screens — including inclined vibrating screens and sizing screens — separate and classify ores, aggregates, minerals, and industrial materials based on particle size. Built with replaceable mesh panels and a heavy-duty eccentric vibration mechanism, they deliver consistent screening efficiency across single and multi-deck configurations matched to the specific material and cut sizes required by the plant.
Key Features
- Efficient material classification and grading
- Single-deck and multi-deck configurations
- High screening efficiency at full operating load
- Heavy-duty eccentric shaft vibration mechanism
- Replaceable screen mesh panels (woven wire / polyurethane)
- Suitable for wet and dry screening applications
Specifications
Capacity Range
1 TPH – 20 TPH
Screen Type
Vibrating Screen / Sizing Screen / Grading Screen
Deck Configuration
Single Deck / Double Deck
Mesh Size
Customizable per cut size
Drive
Vibration Motor / Eccentric Shaft
Structure
Heavy-Duty MS Fabrication
06
Secondary Crushing Equipment

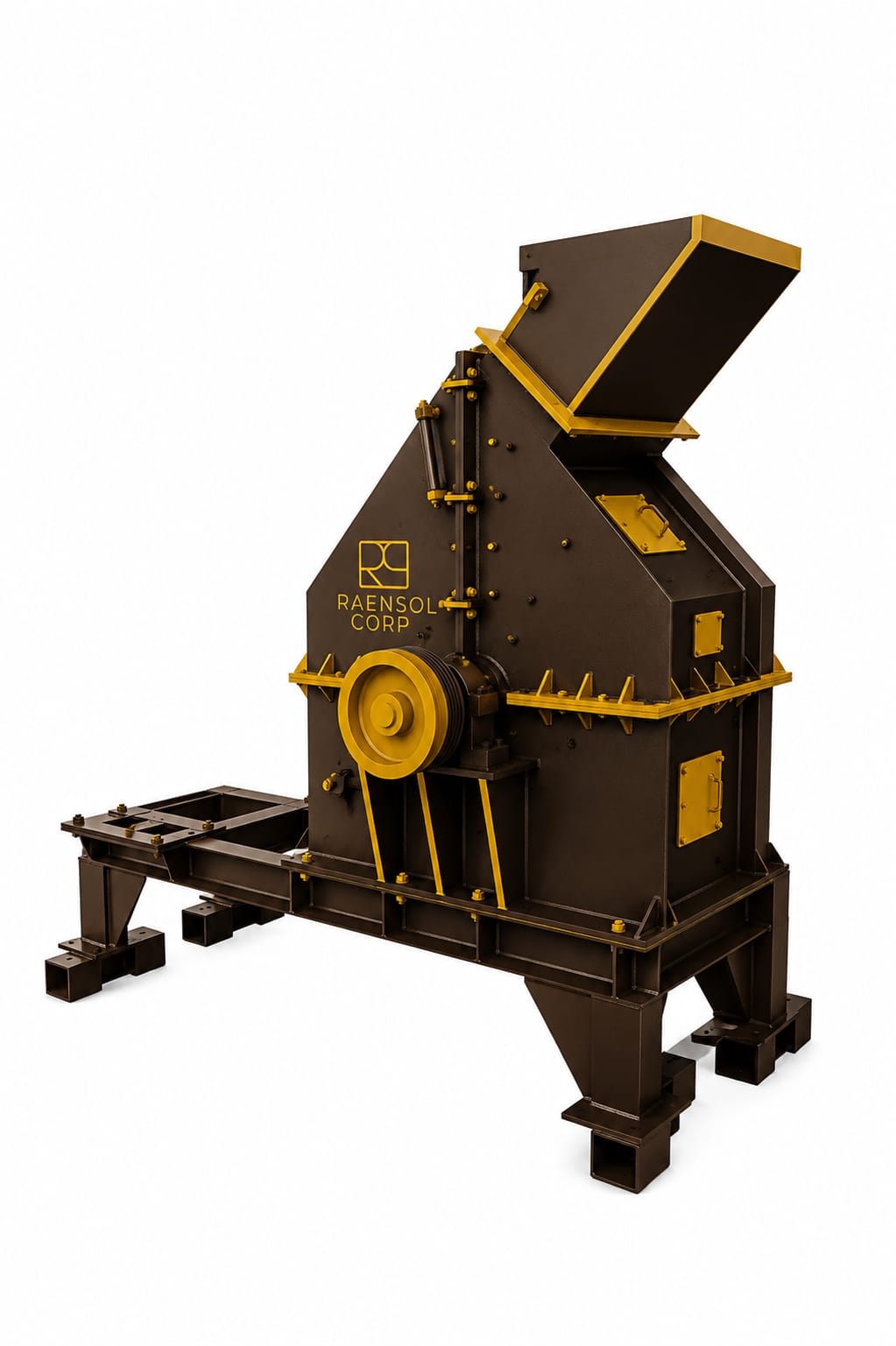

Impact Mill
Secondary Size Reduction
Raensol Corp fabricates impact mills for secondary size reduction of pre-crushed ore, rock, and aggregate materials. The high-speed rotor hammer mechanism delivers rapid particle breakdown, with a perforated mesh screen controlling output size to ensure uniform product gradation before downstream grinding or processing stages.
Key Features
- High-speed rotor hammer mechanism for rapid size reduction
- Uniform output size controlled via perforated mesh screen
- Compact and efficient design suitable for tight plant layouts
- Easy maintenance access for liner and mesh replacement
Specifications
Rotor Diameter
600 mm
Rotor Width
1000 mm
Input Size
30 mm
Output Size
5 mm
Capacity
1 TPH – 20 TPH
Power Requirement
20 HP
Configuration
Single Shaft Rotor Hammer Assembly
07
Fine Grinding Equipment
Grinding Muller
Fine Grinding
Raensol Corp fabricates grinding mullers for fine grinding and uniform mixing of ore and mineral materials requiring a high-mesh output. The casted roller and base liner system delivers consistent particle reduction down to 200 mesh, with a gearbox-integrated drive designed for continuous duty operation across demanding process plant environments.
Key Features
- Uniform mixing and grinding output across full operating load
- Casted rollers and base liner for extended wear resistance
- Robust MS fabricated structure for long service life
- Continuous duty operation capability with gearbox-integrated drive
Specifications
Capacity
1 TPH – 20 TPH
Output Size
200 Mesh
Power Requirement
20 HP
Roller Periphery Liner
Casted
Grinding Base Liner
Casted
Drive System
Gearbox Integrated
Our Approach
Custom-Built
As Per Requirement
Every equipment system Raensol Corp delivers is engineered from first principles — designed around the specific material, throughput, and site conditions of the client's plant. We do not supply off-the-shelf catalogue equipment.
This approach ensures that each system integrates cleanly into the plant flow, performs reliably at rated capacity, and is maintainable under local site conditions — factors that catalogue equipment rarely addresses.
Designed Around
- 01Material characteristics and bulk density
- 02Required throughput (TPH)
- 03Site conditions and layout constraints
- 04Process flow integration requirements
- 05Power availability and electrical specifications
- 06Operational duty cycle and environmental conditions
Where We Operate
Applications
Broader Catalog
Additional Products
We Fabricate
Beyond our core handling systems, Raensol Corp designs and fabricates a wide range of mineral processing and bulk material equipment on a requirement basis. All units are custom-engineered to client process specifications.
